Solder Practice

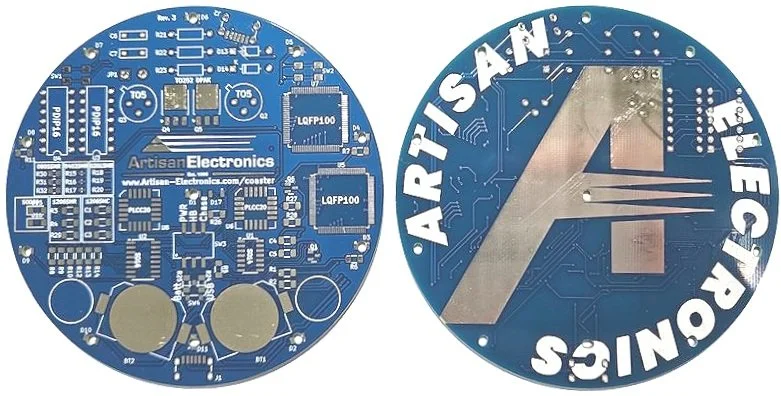

Artisan Electronics has developed a Printed Circuit Board (PCB) that includes all of the PCB mounted components required for J-STD-001 certification. Additionally, the PCB also includes pads for other common components found in the industry. This circuit board can be utilized to hone your own soldering skills, train others to solder, or it could simply be used unpopulated as a drink coaster.

Functionality

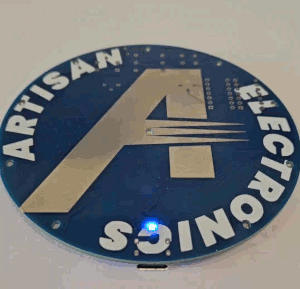

More on the idea of a drink coaster….That is actually what sets this solder practice PCB apart from others that are available. After a select number of simple components are installed, the PCB will illuminate LEDs in a circular pattern when an item is placed on the coaster, it will provide an underglow effect, and provide a heartbeat LED. It was also designed to be powered by two CR2032 batteries or a standard USB C cable.

Purchase

Bare PCB: To purchase the bare PCB or a PCB with all of the flash parts populated, simply go to the Store page in the banner (or click here: Store), add the PCB to your cart, and checkout.

Flash Components: To purchase all of the components required for the heartbeat, underglow, and chase functionality we have created a link that will automatically populate a Digikey cart for you with all of the reference designators included in the Customer Reference section that will then be populated on the packaging in the CREF window. Please note that completing this build on your own does not automaticaly result in a J-STD-001 certification. For more information about how to become J-STD-001 certified, or to become IPC 7711/7712 or IPC 610/620 certified please see the IPC Solder Certification Training page

Digikey: https://www.digikey.com/short/vr0mmf4d

J-STD-001 Components: To purchase all of the PCB components required for J-STD-001 certification we have created a link that will automatically populate a Digikey cart and another that will populate a Mouser cart with all of the reference designators included in the Customer Reference section that will then be populated on the packaging in the CREF window.

Digikey: https://www.digikey.com/short/8n0qrh7z

Mouser: https://www.mouser.com/ProjectManager/ProjectDetail.aspx?AccessID=6d9014cb0a

NOTE: Some of the components within each of the Digikey and Mouser cart links periodically go out of stock. While Artisan will attempt to upkeep these carts in order to ensure the necessary components are available for purchase, when you try to make a purchase you may notice parts to be Out of Stock or on Backorder. If so, and if you don’t feel comfortable finding your own suitable replacements, please feel free to reach out.
